In-place Search for Microsoft Exchange

When preserving a Microsoft 365 (M365) or Exchange mailbox using Exchange Web Services (EWS), it is possible to perform In-place Searches to narrow down the data set using Forensic Email Collector (FEC).

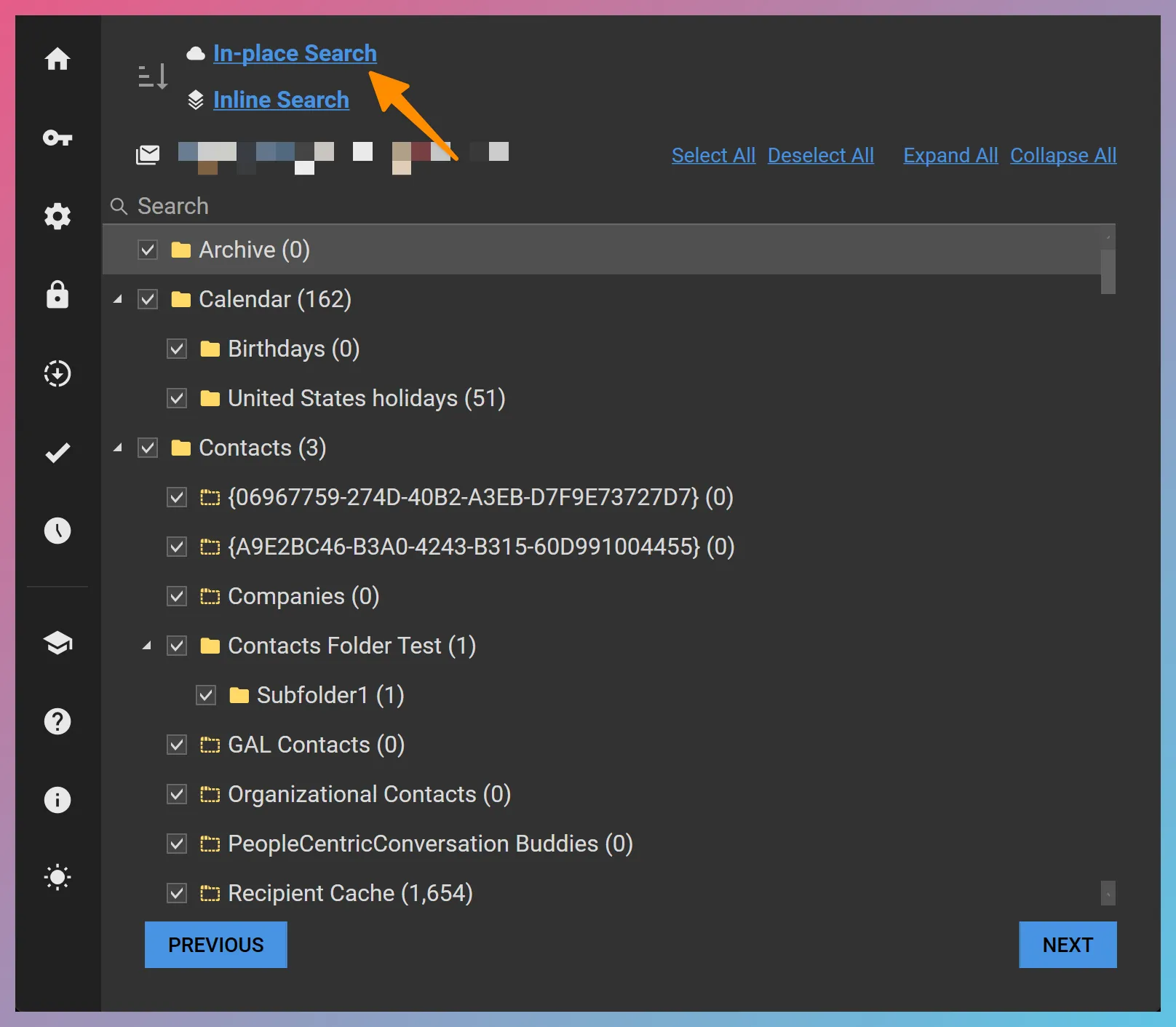

You can launch the In-place Search interface for Exchange by clicking the In-place Search link as shown below:

FEC’s In-place Search allows you to execute your search query on the server and preview the search results. The search syntax is identical to Advanced Query Syntax (AQS). The accuracy of the search results is dependent on the capabilities of the Exchange server executing the search.

Tip

The search is performed only on the selected folders. So, you can exclude certain folders from the search by deselecting them using the checkboxes in the screenshot above before you launch the In-place Search interface.

For example, you can use the right-click context menu option Deselect Hidden Folders to exclude hidden Exchange folders from your search.

What You Can Search For

You can run AQS searches for a keyword without specifying a property. This would result in all indexed properties being searched for that keyword.

Example: contract

You can also specify the property to be searched by including the property name as a keyword.

Example: subject:contract

Supported AQS keywords are as follows:

Keyword	Value type	Example
subject	String	subject:contract
body	String	body:contract dispute
attachment	String	attachment:report
to	String	to:"John Doe"
from	String	from:brown
cc	String	cc:"Jane Doe"
bcc	String	bcc:daniel
participants	String	participants:jack
category	String	category:project
importance	String	importance:high
kind	Item type	kind:meetings
sent	Date	sent:11/30/2015
received	Date	received:yesterday
hasattachment	Boolean	hasattachment:true
isflagged	Boolean	isflagged:true
isread	Boolean	isread:false
size	Number	size:>4000

String Searches

IMPORTANT By default, a string value is searched as a case-insensitive prefix substring search. For example, searching for subject:contract would match any of the following subjects:

• Contract dispute
• How to deal with severe contractions

If you enclose the value in quotes, the entire word would be required rather than matching prefixes. So, searching for subject:"contract" would not match the second subject containing the word “contractions”.

Including multiple words in a query string would require all of the words to be present in the search fields. For example, searching for subject:contract dispute would match any of the following subjects:

• Contract dispute
• Disputed contracts

Finally, enclosing the query string in quotes causes multiple words to be treated as a phrase. So, if you search for subject:"contract dispute", only the first subject above would be matched.

Date Searches

You can search for specific dates in mm/dd/yyyy format.

Example: received:12/21/2016

You can also use the greater than, less than, and range operators as follows:

received:>7/30/2016
sent:<=11/9/2011
received:8/21/2015..9/7/2016

Boolean Operators

The following Boolean operators are supported:

Operator	Examples
AND	contract AND from:"Jack Daniels" subject:(contract AND dispute)
OR	subject:contract OR from:"Jane Doe" from:("Jack Daniels" OR "John Doe")
NOT	NOT from:"Jane Doe" received:NOT today

Saving and Clearing the Search Query

Once you have finalized your search query, you can save it by using the SAVE button. This will close the In-place Search window and activate your query. If you would like to clear the search query, you can click on the small 🗑️ symbol next to the Search Query Activated text.

Limitations of Exchange Search

The search functionality built into Exchange and utilized by FEC is limited to the documents that Exchange servers are able to recognize and index. For instance, a proprietary CAD file unrecognized by an Exchange server, or files inside an encrypted file archive would not be indexed or searched. Similarly, if a file has no extractable text (e.g., a scanned TIFF image of a document), an Exchange server would not be able to extract text from it or index it.

Given the above limitations, it may be appropriate to use the Exchange search functionality in FEC to filter messages by top-level message characteristics such as sender, recipient and subject content. Keep these limitations in mind if you plan to use this functionality to perform a blanket search intended to search all documents and their attachments recursively.
